HDPE Geomembrane Liner for Water Storage & Containment
Durable waterproof lining solution for ponds, reservoirs, canals, aquaculture, wastewater systems, and industrial water storage applications.
About DWC Pipe
HDPE geomembrane pond liner is a durable waterproof lining solution designed for reliable water containment and seepage prevention. It is widely used in ponds, reservoirs, canals, aquaculture systems, wastewater treatment, industrial storage, and infrastructure projects where long-term protection is required.
MIPATEX Pond Liner, a MIPA Group brand, is manufactured using quality polymer material with UV-stabilized construction to deliver strength, flexibility, chemical resistance, and dependable field performance. The liner helps reduce water loss, protects the base surface, and supports efficient water management across agriculture, commercial, and industrial applications.
HDPE Geomembrane Pond Liner Features
UV Resistant
Designed to withstand outdoor exposure and support stable performance under sunlight.
High Strength
Provides strong resistance against tearing, puncture, and stress during installation.
Seepage Control
Creates a 100% waterproof barrier that helps prevent seepage and protect stored water.
Easy Installation
Flexible structure supports smooth laying and joining across different site conditions.

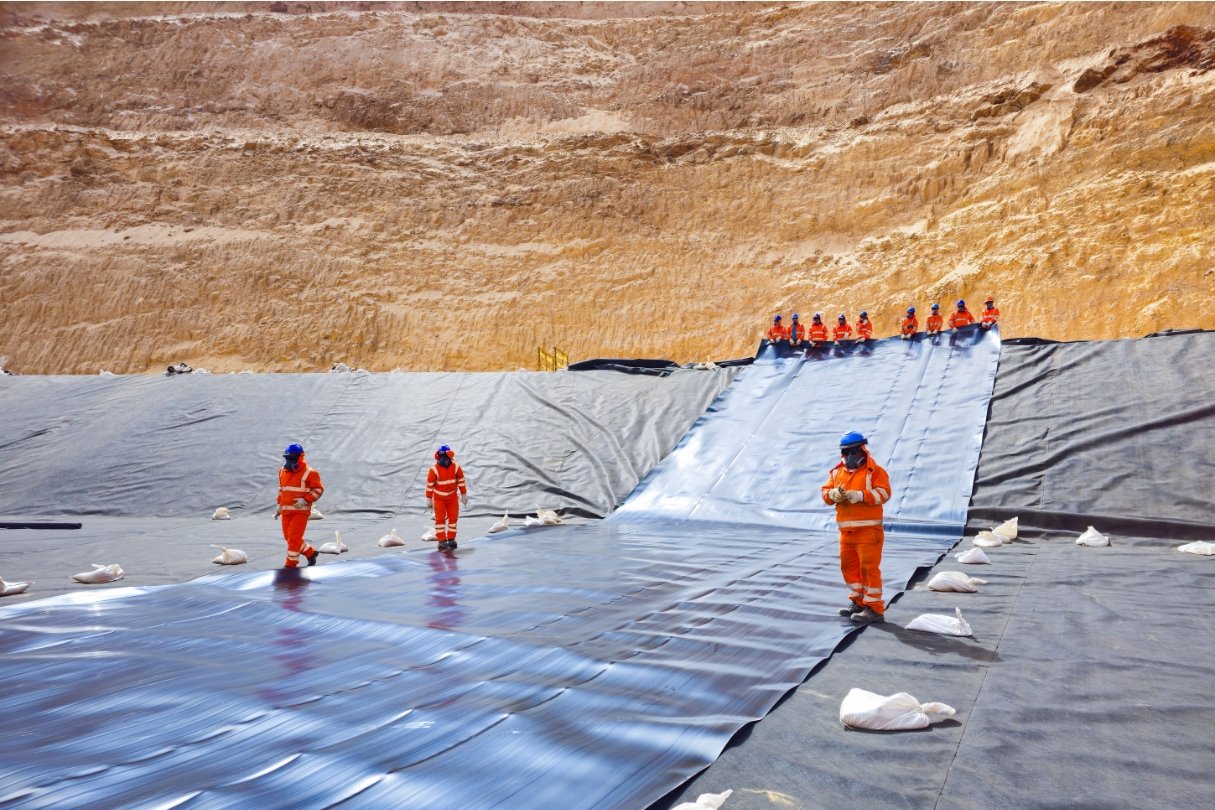

HDPE Geomembrane Pond Liner Installation Process
HDPE Geomembrane Applications

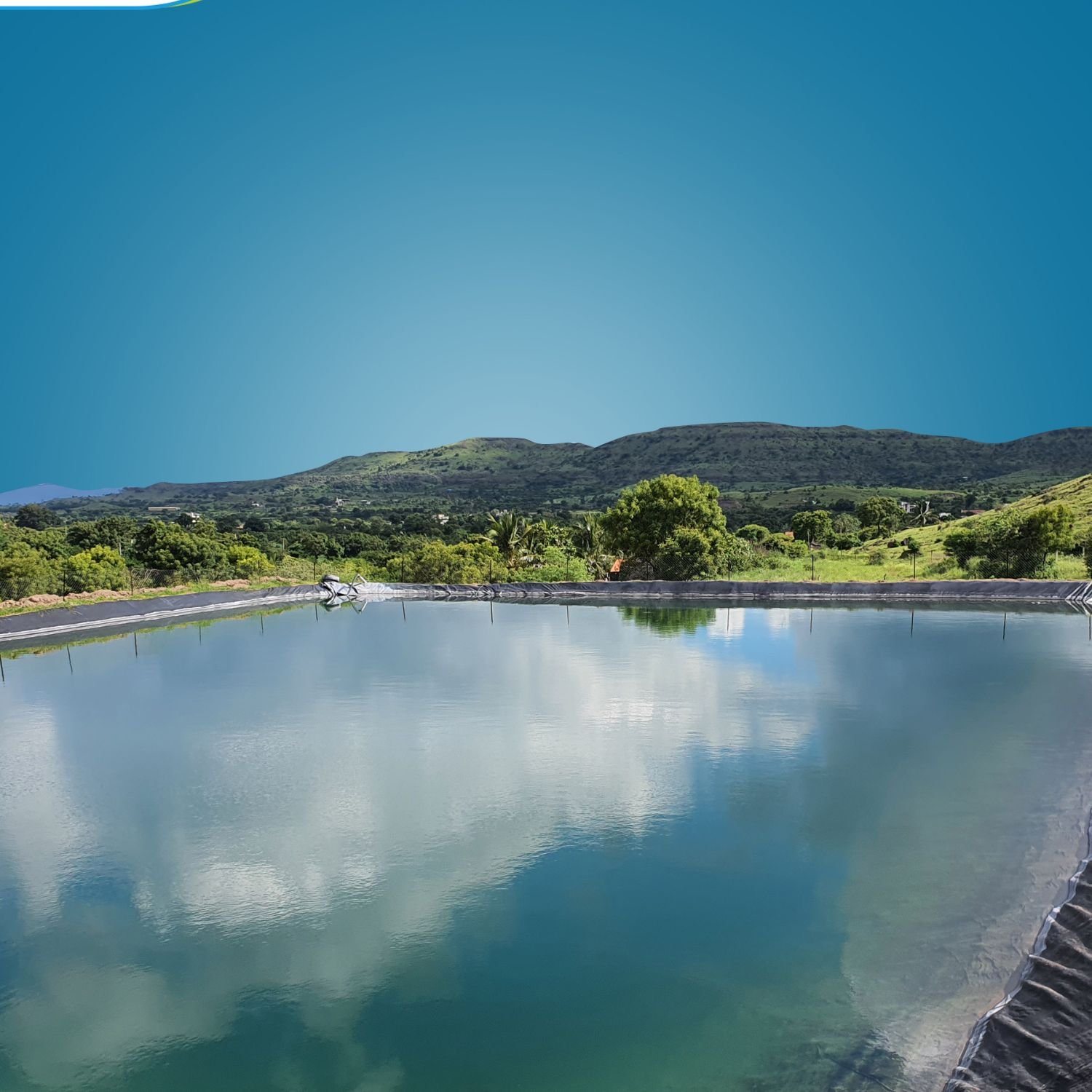

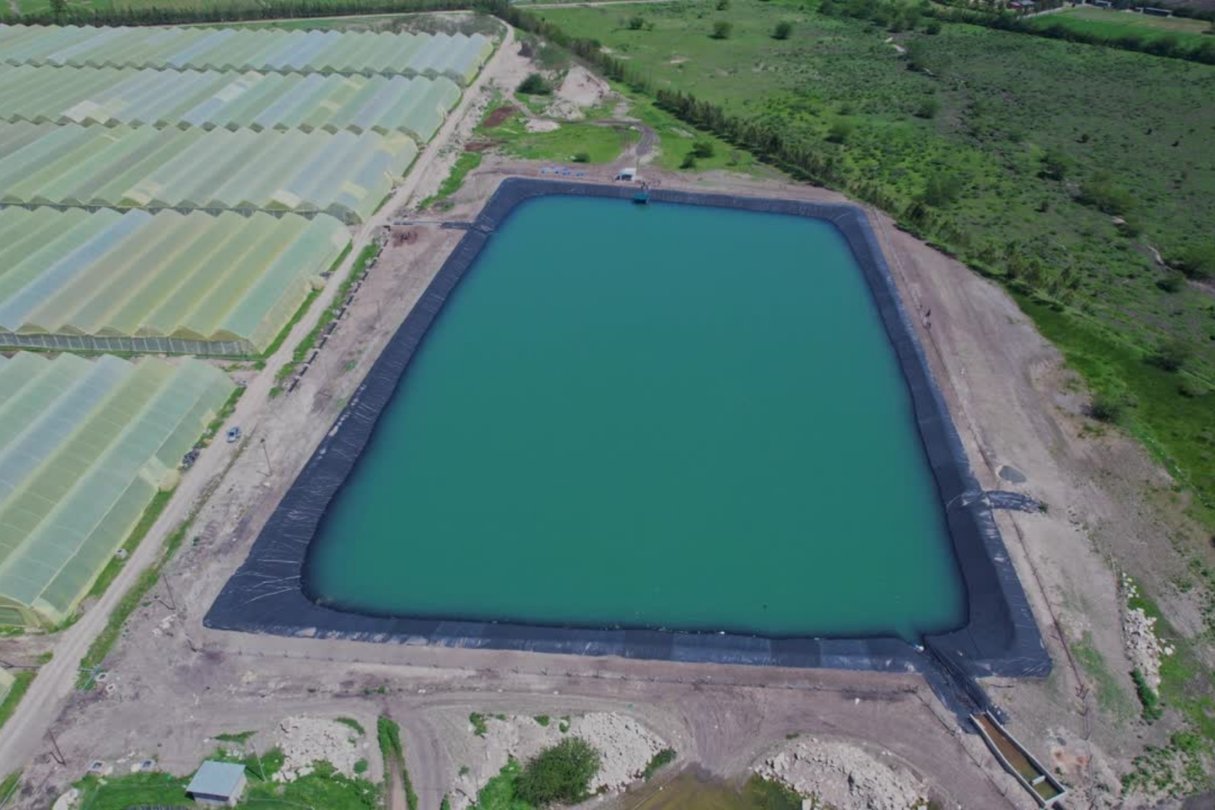

Farm Ponds & Reservoirs
Used for lining farm ponds and reservoirs to reduce seepage loss, store water, and support irrigation planning during dry periods.

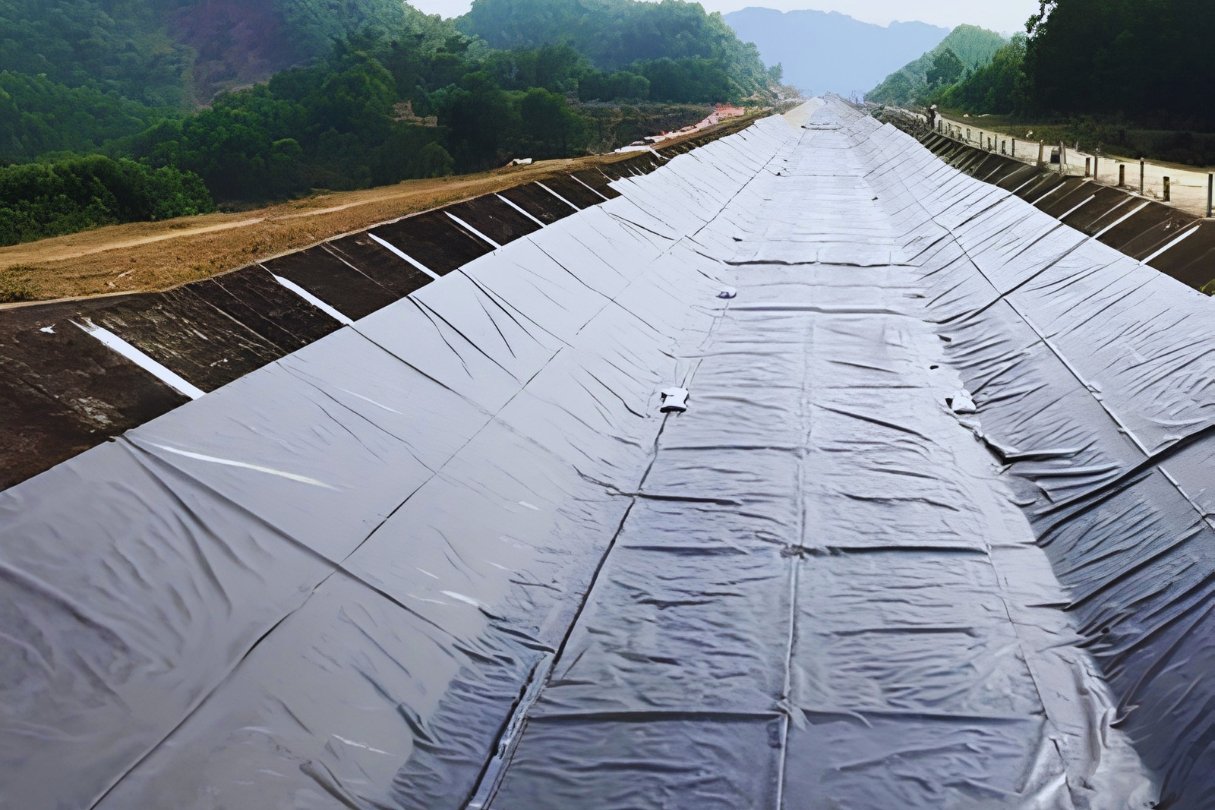

Canal Lining & Water Channels
Helps control seepage in canals, irrigation channels, and water conveyance structures for better water-use efficiency.
Infrastructure & Road Projects
Used as a separation, lining, and protection layer under roads, embankments, and selected civil construction areas.

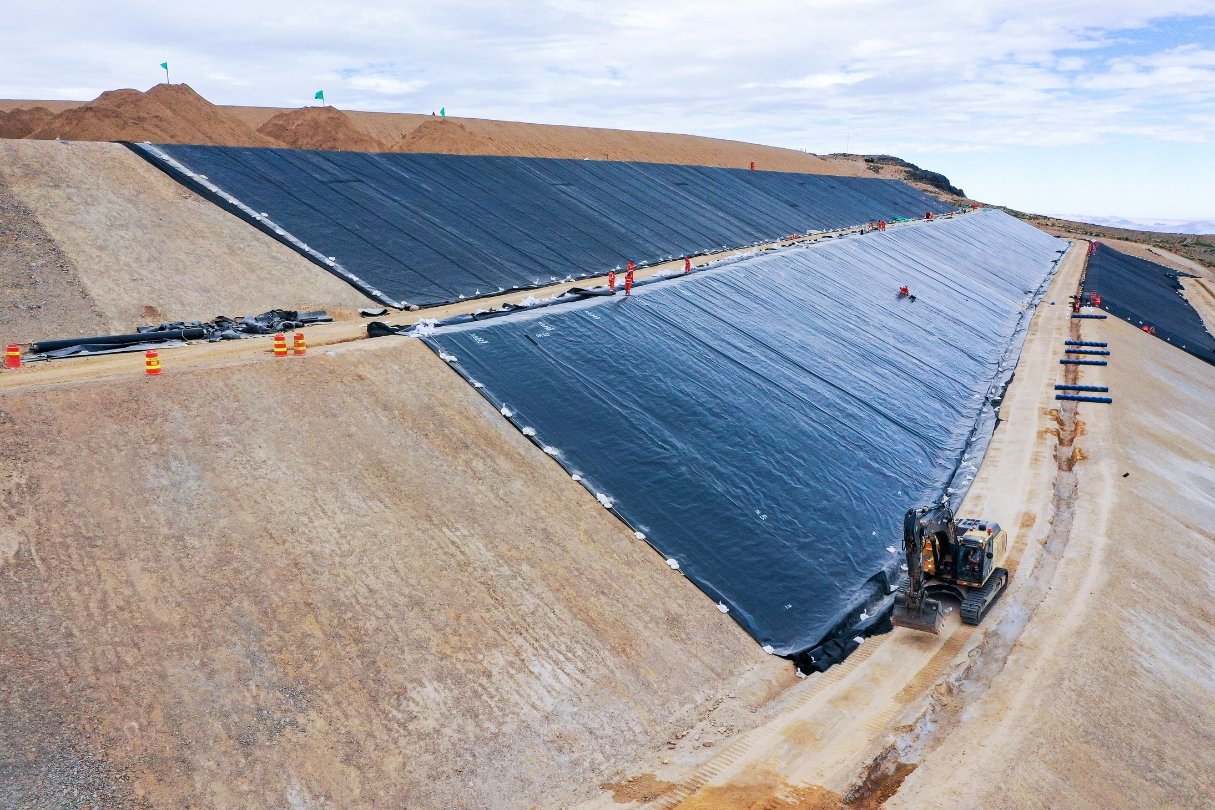

Landfill & Wastewater Containment
Suitable for landfill lining, capping, wastewater ponds, and effluent storage where seepage control is important.
HDPE Geomembrane Specifications
Type I – 250 GSM
- Thickness: 0.25 mm
- Mass: 250 GSM
- Breaking Strength: 3300 N / 3000 N
- Puncture Resistance: 300 N
- Seam Strength: 5 N/mm
- Hydrostatic Resistance: No leakage at 10 kg/cm²
Type II – 420 GSM
- Thickness: 0.50 mm
- Mass: 420 GSM
- Breaking Strength: 6600 N / 6000 N
- Puncture Resistance: 500 N
- Seam Strength: 30 N/mm
- Hydrostatic Resistance: No leakage at 15 kg/cm²
Type III – 650 GSM
- Thickness: 0.75 mm
- Mass: 650 GSM
- Breaking Strength: 8200 N / 7400 N Min
- Puncture Resistance: 725 N
- Seam Strength: 40 N/mm
- Hydrostatic Resistance: No leakage at 20 kg/cm²
Type IV – 950 GSM
- Thickness: 1.00 mm
- Mass: 950 GSM
- Breaking Strength: 10700 N / 9700 N
- Puncture Resistance: 900 N
- Seam Strength: 42 N/mm
- Hydrostatic Resistance: No leakage at 25 kg/cm²
Need Data Sheet or Test Certificate?
Why Choose MIPATEX Pond Liner?
Reliable
Containment
Creates a strong waterproof barrier to help prevent seepage and protect stored water or liquids.
Project-Ready
Quality
Manufactured with consistent thickness, strength, and finish to support dependable site performance.
Long
Outdoor Life
UV-stabilised HDPE construction supports durability in open, exposed, and demanding conditions.
Chemical
Resistance
Suitable for contact with soil, moisture, wastewater, and many common containment environments.
Strong Site
Performance
Provides resistance against tearing, puncture, handling stress, and installation-related pressure.
Weldable
Installation
Supports hot-wedge or extrusion welding for strong, continuous, and leak-resistant jointing.
